OB vans and other production units

Are you looking for an experienced team to produce a high-quality TV signal? The TVN OB van fleet offers the right outside broadcasting van for every need; and our crews professionally implement the production on location. Let us advise you and call +49 511 1212-3723.

Benefit from our state-of-the-art outside broadcasting van fleet and our experienced OB van teams. Whether UHD-HDR, 3D audio or simultaneous production of four programmes with up to 100 cameras: Our outside broadcasting vans leave nothing to be desired. Our crews are production professionals who implement the signals of high-profile sporting and show events as well as major political and social events. Thanks to many years of experience and routine, they ensure a pleasant production atmosphere on board the outside broadcast vans, even during live broadcasts. The results are consistently excellent.

All our outside broadcasting vans are designed according to a continous technical architecture. They are modular, networked and highly customisable. We are happy to implement the highest standards and special requirements of our clients in order to achieve the best possible production result at all times.

The flight case unit is also based on concepts by TVN engineers and adheres to a consistent technical principles. Whether you are broadcasting live or recording, flightcase technology is the perfect modular solution for pilot projects, restrictes space conditions or one-off outdoor events.

TVN-Ü8UHD

The most powerful OB van on the European market – for UHD/HDR and 3D audio maximum performance

  • UHD/HDR-capable, state-of-the-art broadcast technology with corresponding redundancies, incl. HDR monitoring and multiviewer
  • unique floor concept with 39 workstations on approx. 120 m² (incl. equipment truck)
  • 32 permanent UHD Sony cameras, expandable with special cameras (ACS, Polecam, wireless systems)
  • latest video mixer Sony MLS-X1: 4 units
  • equipped with the most powerful 12G router currently on the market
  • independent parallel HD and UHD operation
  • 5.1.4 standard audio monitoring for 3D Audio / Dolby Atmos, acoustically calibrated

Factsheet TVN-Ü8UHD

TVN-Ü7UHD

The compact allrounder with integrated satellite uplink for the most demanding productions and UHD/HDR feeds with minimal parking space

  • 12 cameras plus special cameras
  • compact space concept in which the integrated satellite uplink technology, 13 workstations and the loading space are combined in one vehicle
  • UHD/HDR-capable, state-of-the-art and professional broadcast technology with corresponding redundancies
  • calibrated monitoring capability up to Dolby Surround

factsheet TVN-Ü7UHD

TVN-Ü6UHD

The ‘space phenomenon’ for the largest and most demanding productions in UHD/HDR with two identical control rooms and a total of 42 workstations.

  • 24 cameras plus special cameras
  • unique space concept with 35 workstations on approx. 100 m²
  • 7 additional workstations in the equipment van (3rd control room, editing, slo-mo, 2nd audio control room, etc.)
  • UHD/HDR-capable, cutting-edge and professional broadcast technology with corresponding back-up systems
  • parallel operation of HD and UHD possible
  • calibrated audio monitoring options from stereo to 3D audio (e.g. Dolby Atmos)



Please enter here for a virtual tour. You will find all further information in our factsheet.



factsheet TVN-Ü6UHD

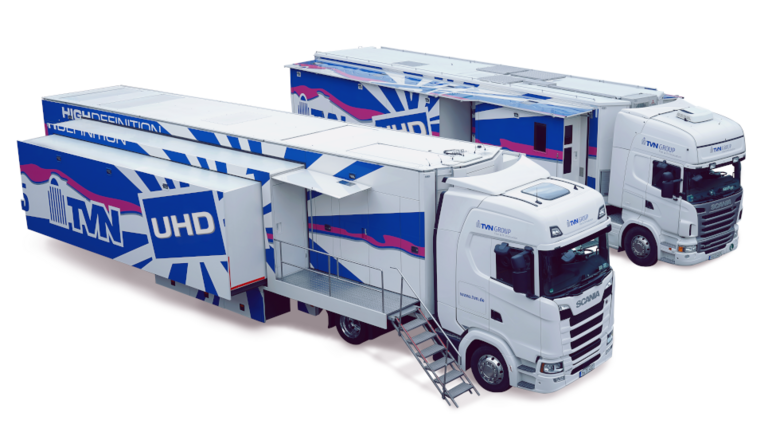

TVN-Ü5UHD

A first-class OB van with plenty of space and technology for even the most demanding productions in UHD/HDR.

  • 24 cameras plus speciality cameras
  • 30 workstations on approx. 75 m² with two separate control rooms
  • 7 additional workstations in the equipment van (3rd control room, editing, slo-mo, 2nd audio control room, etc.)
  • UHD/HDR-capable, cutting-edge and professional broadcast technology with corresponding back-up systems
  • parallel operation of HD and UHD possible
  • calibrated audio monitoring options from stereo to Dolby Surround



You will find all further information in our factsheet.

factsheet TVN-Ü5UHD

TVN-Ü4HD

The cost-efficient outside broadcasting van for medium production sizes with low space requirement and full capacity.

  • 12 cameras plus special cameras
  • 18 workstations on approx. 40 m² with two separate control rooms
  • 4 additional workstations in the equipment van (editing, slo-mo, etc.)
  • professional broadcast technology with corresponding back-up systems
  • large number of workstations on a small space (one-sided pull-out)
  • perfect for unilateral sets



You will find all further information in our factsheet.

factsheet TVN-Ü4HD

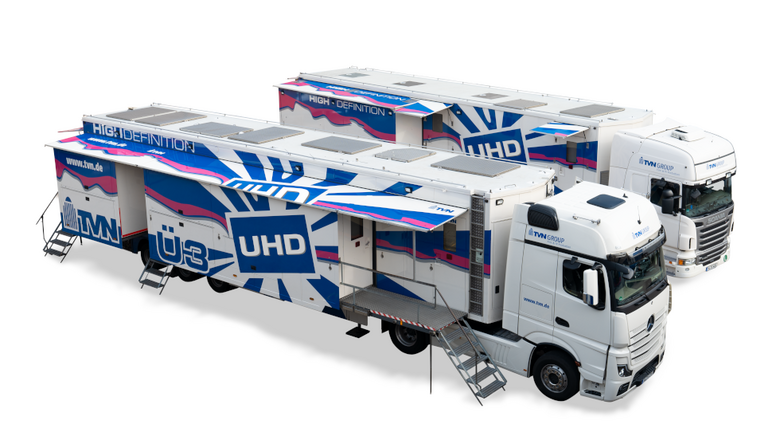

TVN-Ü3UHD

The perfect outside broadcasting van for demanding productions and larger sets.

  • 20 cameras plus speciality cameras
  • 23 workstations on approx. 50 m² with two separate control rooms
  • 3 additional workstations in the equipment van (editing, slo-mo, etc.)
  • 3G-capable, cutting-edge and professional broadcast technology with corresponding back-up systems

You will find all further information in our factsheet.

factsheet TVN-Ü3UHD

TVN-Ü2HD

The optimal OB van for professional production and support on a small footprint: compact, flexible and efficient.

  • 10 cameras plus special cameras
  • 12 workstations in 4 rooms with separate access | 5 further workplaces in the set-up truck
  • multifunctional production rooms, up to 3 control rooms
  • professional broadcast technology with corresponding redundancies
  • very small floor space (no drawer extension)

You will find all further information in our factsheet.

factsheet TVN-Ü2HD

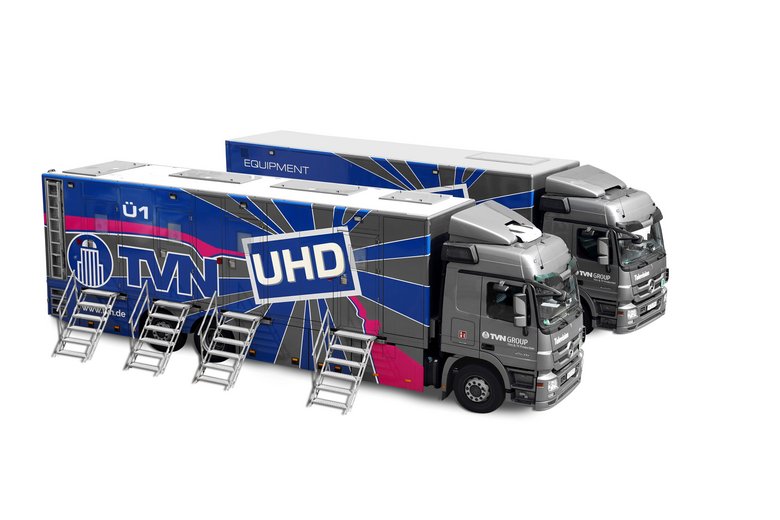

TVN-Ü1UHD

The optimal OB van for professional production and support on a small footprint: compact, flexible and efficient. The biggest of the small.

  • 14 cameras plus special cameras
  • 12 workstations in 4 rooms with separate access | 5 further workplaces in the set-up truck
  • multifunctional production rooms, up to 3 control rooms
  • UHD/HDR-capable, professional broadcast technology with corresponding redundancies
  • very small floor space (no drawer extension)

You will find all further information in our factsheet.

factsheet TVN-Ü1UHD

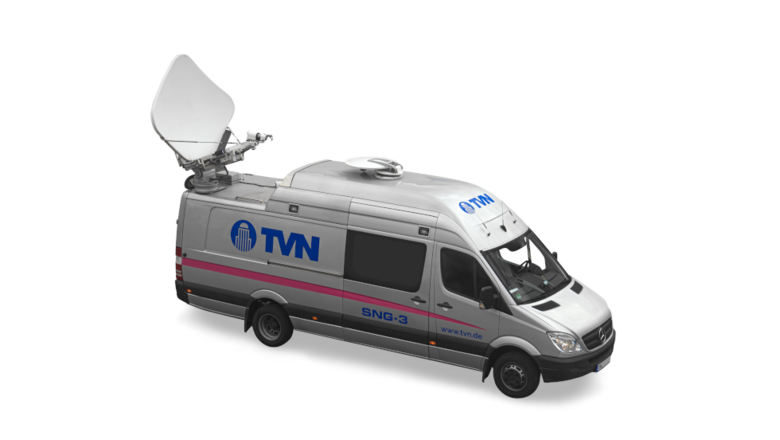

TVN-SNG 1 - 10

The powerful SNG fleet for satellite transmissions or streaming in HD and UHD.

  • professional uplink and broadcast technology with corresponding redundancies (also in UHD)
  • all EBU or UEFA requirements are met
  • integrated streaming option
  • one-room concept (1-4 workstations)
  • integrated emergency power generator / UPS concept
  • some vehicles are prepared for 3 KA productions

factsheet TVN-SNG 1 - 10

TVN-MPE3UHD

The highly compact flightpack for worldwide productions of all requirements

  • a high-performance flightcase unit with the equipment and performance of a complete OB van
  • two fully equipped picture control rooms, two audio control rooms, six slo-mo and two highlight workstations
  • installed and ready for operation on site in next to no time
  • customised configuration according to your production requirements
  • efficient project planning thanks to global rental network

Reference projects

project_images/TVN_MOBILE_PRODUCTION_Firmenseite_Fussball_Projektbild.jpg

Unique football expertise

  • several thousand football productions since 1994 – more than one thousand football productions at the highest level from 2014 to 2021 throughout Europe alone
  • Bundesliga/DFB Cup/UEFA Champions League/UEFA Europa League/UEFA Nations League/UEFA European Qualifiers
  • over more than one hundred football productions in UHD-HDR
project_images/TVN_MOBILE_PRODUCTION_Firmenseite_Wintersport_Projektbild.jpg

Top winter sports references

  • several productions in the snow every winter since 2001
  • World Cup Garmisch (2020), Biathlon WC Oberhof (2021), various productions in St. Anton, Saalbach-Hinterglem, Schladming, etc.
project_images/TVN_MOBILE_PRODUCTION_Firmenseite_Festivals_Projektbild.jpg

The address for large festival productions

  • big festivals and concerts every summer since 2006
  • W:O:A Wacken Open Air, Rock am Ring, Lollapalooza, Hurricane, Splash, Melt, Frauenfeld, Parookaville – we have produced them all
project_images/TVN_MOBILE_PRODUCTION_Firmenseite_Studios_Projektbild.jpg

Studio/permanent control room show productions

  • Lanz/Küchenschlacht/BINGO!/Helene Fischer/ECHO/etc.
  • up to 200 high-quality show productions per year
  • 10 years of ‘WILLKOMMEN BEI CARMEN NEBEL’ ZDF prime time show on Saturday evenings
project_images/TVN_MOBILE_PRODUCTION_Firmenseite_Air_Race_Projektbild.jpg

Global production of the RED BULL AIR RACE

  • high-performance TVN FlightCase Unit
  • complex production requirements successfully implemented with special technology
  • globally consistent, high production standard
project_images/TVN_MOBILE_PRODUCTION_Firmenseite_Broadcastpartner_Projektbild980x552.png

The broadcast partner for large productions in all sectors

  • 100 boxing productions from 2003 to 2017 (all Klitschko fights in Europe and all fights of the Sauerland boxing team)
  • Berlin Marathon since 2017 (host & national processing)
  • CHIO Aachen since 2017
  • major show events (Germany’s Next Topmodel Finale, Helene Fischer, Andrea Berg, ECHO, OTTO, LAUREUS AWARD, etc.)
project_images/TVN_MOBILE_PRODUCTION_Firmenseite_Audi_Cup_Projektbild980x552.jpg

Complete handling of complex productions

  • development of production concepts, compilation of production crews, broadcasting, etc.
  • UEFA Europa League Final 8, 2020/AudiCup 2019/Water Polo Champions League Final 8 2019
  • by means of TVN SPORTS MEDIA and MADSACK, one of the largest editorial networks for the realisation and conceptual design of complete broadcast programmes and shows
project_images/TVN_MOBILE_PRODUCTION_Firmenseite_LiveCopter_Projektbild980x552.jpeg

TVN Live Copter

  • more than 100 productions per year, all over Europe
  • professional video transmission incl. zoom function
  • (broadcast) security is top priority at TVN
  • 4 high-end live-copter units
  • FIFA Women’s World Cup 2019, Bundesliga, DFB Cup, DFB international matches, IBU Biathlon World Cup Oberhof 2021, Hamburg Wasser World Triathlon 2020, ZDF entertainment show Fernsehgarten
project_images/TVN_MOBILE_PRODUCTION_Firmenseite_Innovationen_Projektbild980x552.jpg

Your partner for innovations and new developments

  • pioneering work with UHD-HDR and 3D audio in the German market
  • innovative projects such as the 9:16 vertical production in the Bundesliga
  • production company of the DFL Sportsinnovation Fair 2018
  • variety of specialised camera technology (e.g. Polecam)
